March 2022 Nav Arc 1

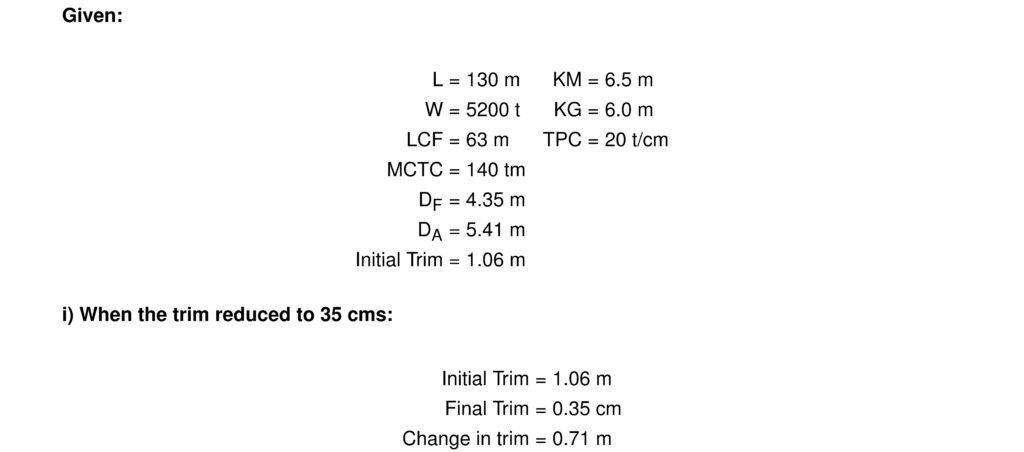

Q.2 A ship of L = 130 m, W = 5200 t, CF = 2m aft of midship MCTC = 140mt, KM = 6.5, K.G. = 6.0m, TPC = 20t, draft Fwd = 4.35m, Aft = 5.41m dry docked. Calculate her residual GM and the drafts F & A.

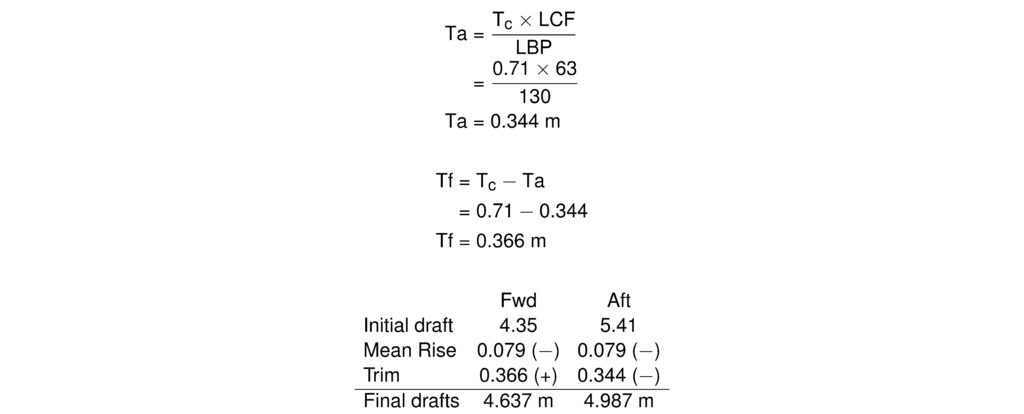

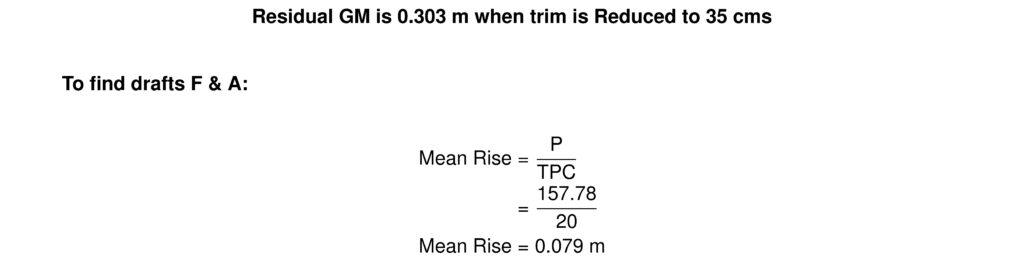

i) When the trim reduced to 35 cms.

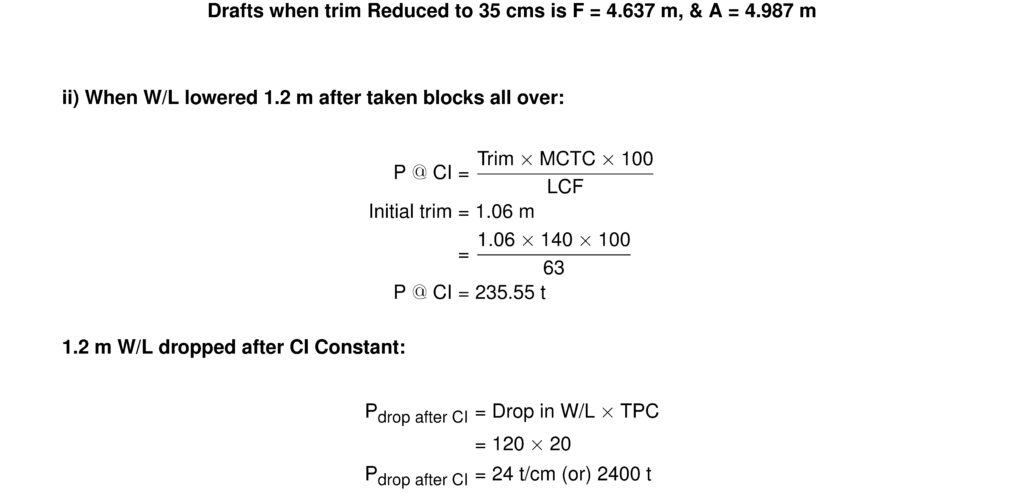

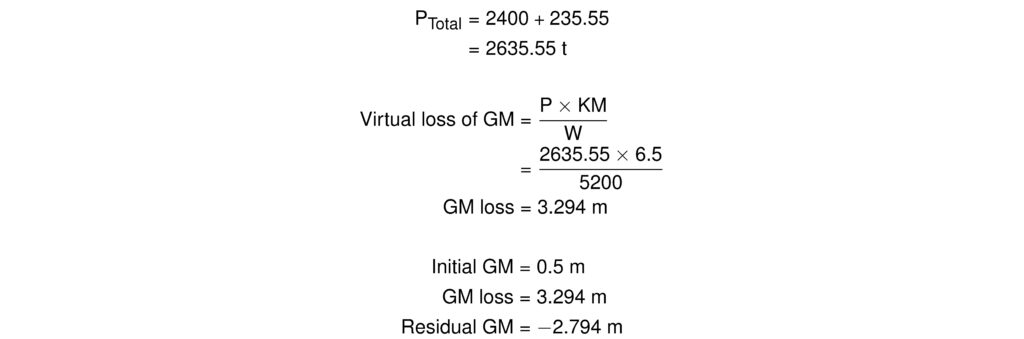

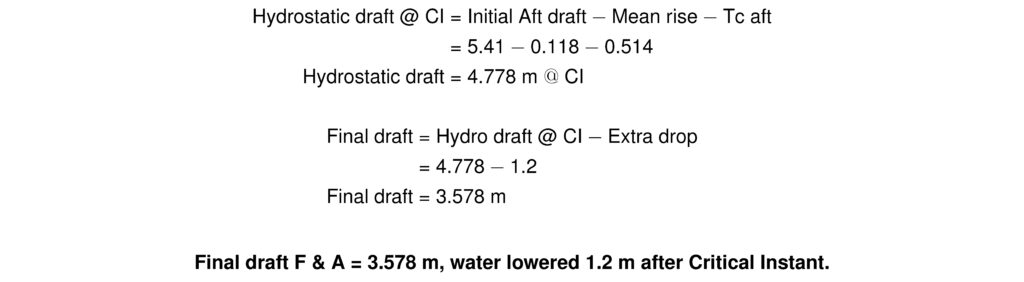

ii) When the water level has been lowered 1.2m after she has taken the blocks all over.

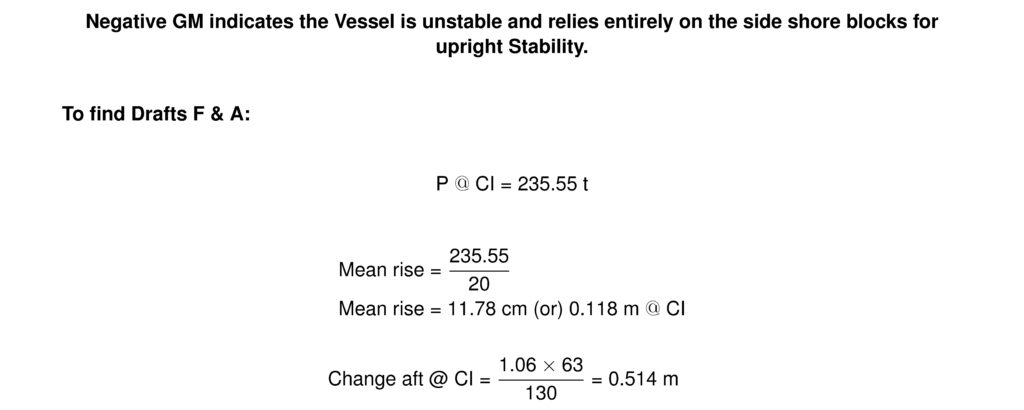

Answer:
