Jan 2024 AM Nav Arc 1

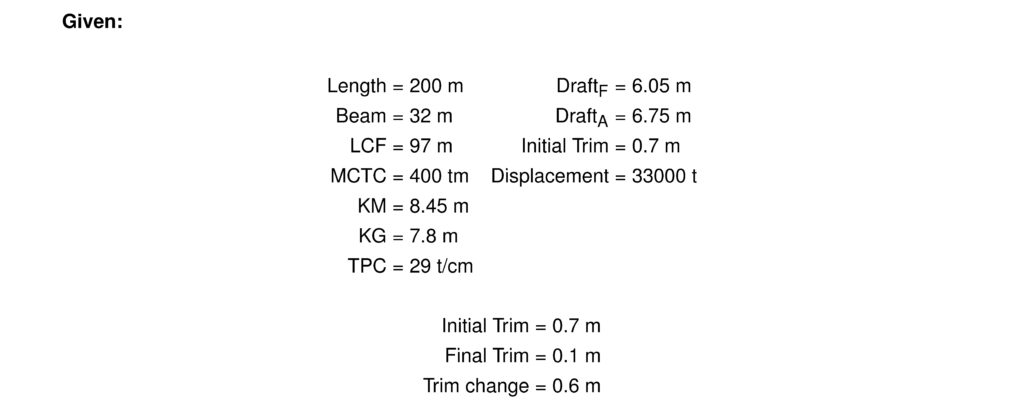

Q.1 A ship of length 200m, Beam 32m, draft Fwd: 6.05m, Aft 6.75m is to be dry docked. CF = 3m aft of midship, MCTC 400 tm, KM = 8.45m, KG = 7.8m, TPC = 29t. Calculate her residual GM and drafts Fwd and Aft when the trim has reduced to 10 cms.

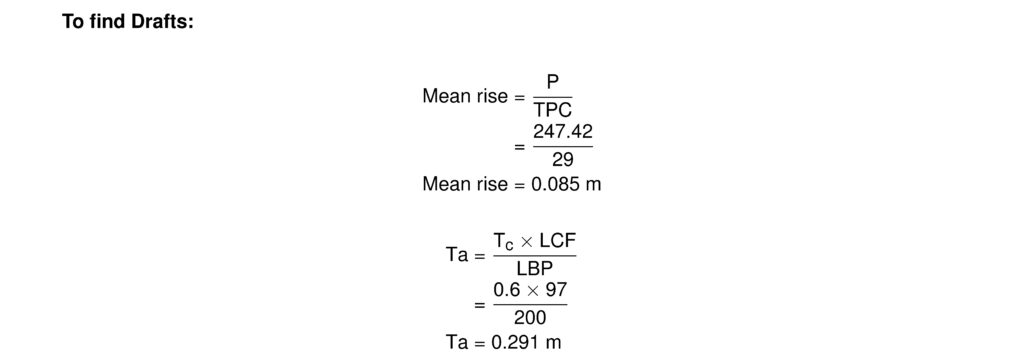

Answer:
