Jan 2020 Nav Arc 1

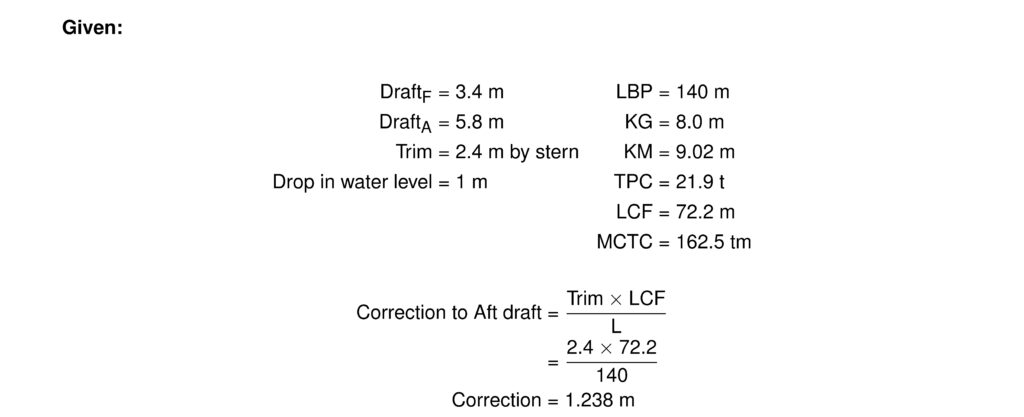

Q.2 A vessel of following particulars enters a SW dry dock. LBP = 140m, DF= 3.4m, DA = 5.8m, KG = 8.0, KM = 9.02, displacement = 8930t, TPC = 21.9t, LCF = 72.2m from AP, MCTC 162.5 tm. Find the virtual GM and draft F & A, when the level water has fallen one meter after stern has taken to the blocks. Given KM at this displacement 9.18m.

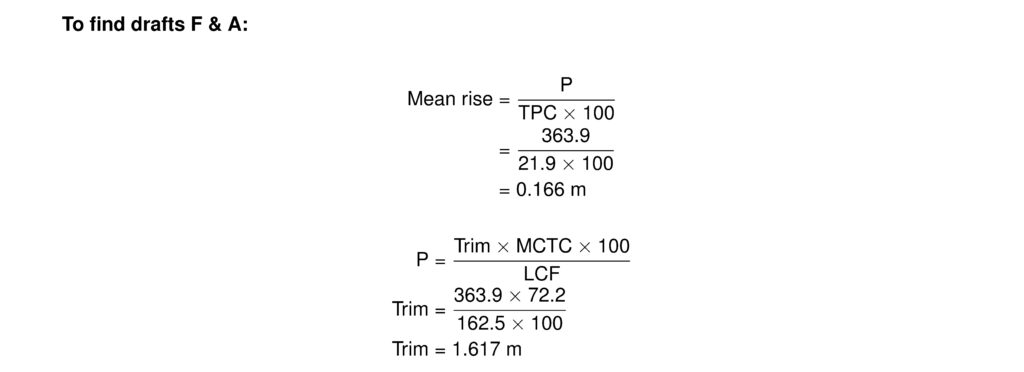

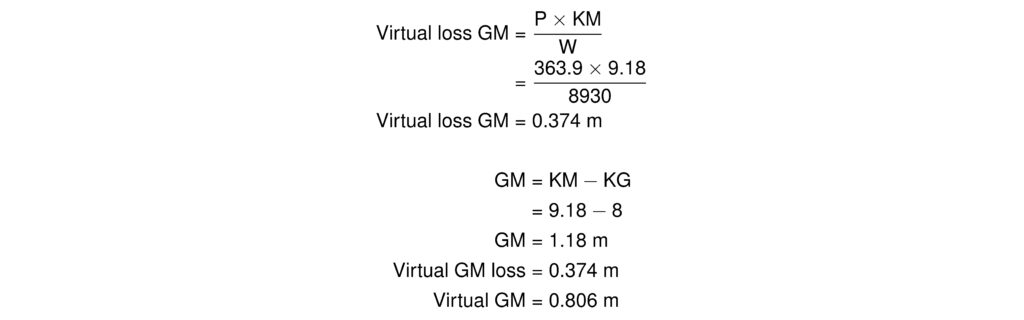

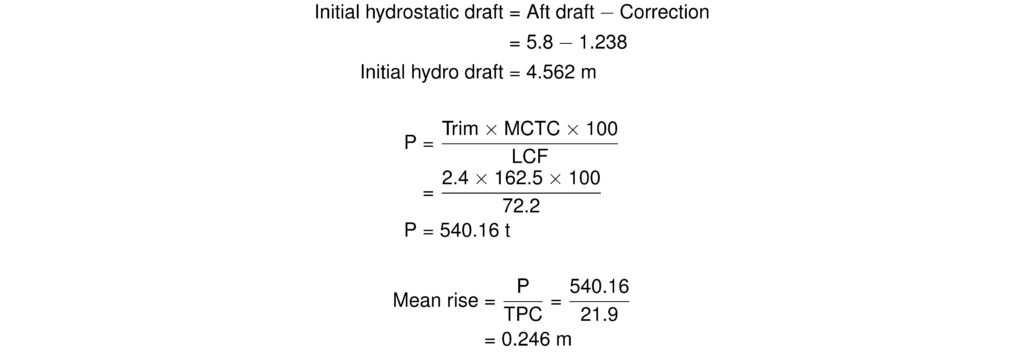

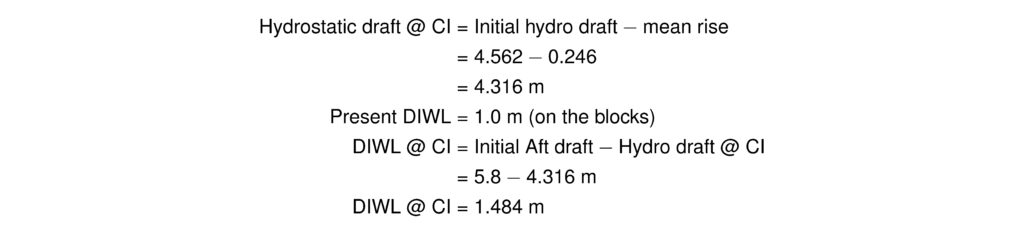

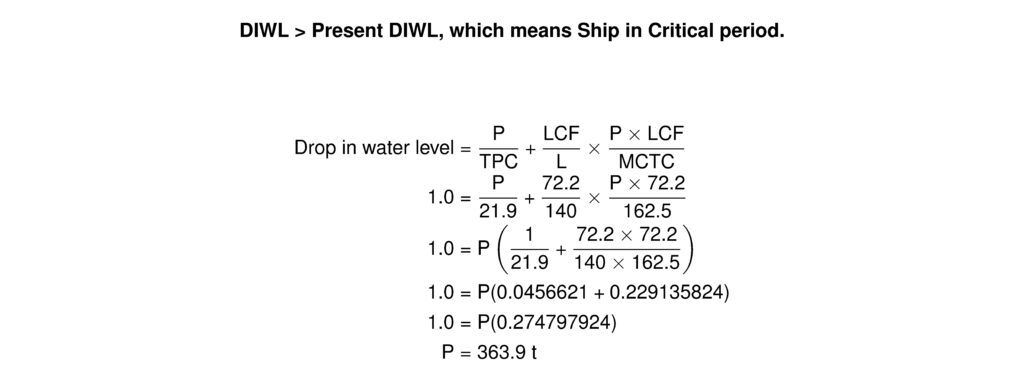

Answer:
